依赖包

React Native的植入过程同时需要React和React Native两个node依赖包。

package.json

我们把具体的依赖包记录在package.json文件中。如果项目根目录中没有这个文件，那就自己创建一个。

对于一个典型的React Native项目来说，一般package.json和index.ios.js等文件会放在项目的根目录下。而iOS相关的原生代码会放在一个名为ios/的子目录中,这里也同时放着你的Xcode项目文件（.xcodeproj）。

下面是一个最简单的package.json的内容示例。

示例中的version字段没有太大意义（除非你要把你的项目发布到npm仓库）。scripts中是用于启动packager服务的命令。dependencies中的react和react-native的版本取决于你的具体需求。一般来说我们推荐使用最新版本。你可以使用npm info react和npm info react-native来查看当前的最新版本。另外，react-native对react的版本有严格要求，高于或低于某个范围都不可以。本文无法在这里列出所有react native和对应的react版本要求，只能提醒读者先尝试执行npm install，然后注意观察安装过程中的报错信息，例如require react@某.某.某版本, but none was installed，然后根据这样的提示，执行npm i -S react@某.某.某版本。

</div>

{
  "name": "NumberTileGame",
  "version": "0.0.1",
  "private": true,
  "scripts": {
    "start": "node node_modules/react-native/local-cli/cli.js start"
  },
  "dependencies": {
    "react": "15.4.1",
    "react-native": "0.39.2"
  }
}

</div>

{
  "name": "swift-2048",
  "version": "0.0.1",
  "private": true,
  "scripts": {
    "start": "node node_modules/react-native/local-cli/cli.js start"
  },
  "dependencies": {
    "react": "15.4.1",
    "react-native": "0.39.2"
  }
}

</div>

安装依赖包

使用npm（node包管理器，Node package manager）来安装React和React Native模块。这些模块会被安装到项目根目录下的node_modules/目录中。 在包含有package.json文件的目录（一般也就是项目根目录）中运行下列命令来安装：

$ npm install

React Native框架

React Native框架整体是作为node模块安装到项目中的。下一步我们需要在CocoaPods的Podfile中指定我们所需要使用的组件。

Subspecs

在你开始把React Native植入到你的应用中之前，首先要决定具体整合的是React Native框架中的哪些部分。而这就是subspec要做的工作。在创建Podfile文件的时候，需要指定具体安装哪些React Native的依赖库。所指定的每一个库就称为一个subspec。

可用的subspec都列在node_modules/react-native/React.podspec中，基本都是按其功能命名的。一般来说你首先需要添加Core，这一subspec包含了必须的AppRegistry、StyleSheet、View以及其他的一些React Native核心库。如果你想使用React Native的Text库（即<Text>组件），那就需要添加RCTText的subspec。同理，Image需要加入RCTImage，等等。

Podfile

在React和React Native模块成功安装到node_modules目录之后，你就可以开始创建Podfile以便选择所需的组件安装到应用中。

创建Podfile的最简单的方式就是在iOS原生代码所在的目录中使用CocoaPods的init命令：

## 在iOS原生代码所在的目录中（也就是`.xcodeproj`文件所在的目录）执行：
$ pod init

Podfile会创建在执行命令的目录中。你需要调整其内容以满足你的植入需求。调整后的Podfile的内容看起来类似下面这样：

</div>

# target的名字一般与你的项目名字相同
target 'NumberTileGame' do

  # 'node_modules'目录一般位于根目录中
  # 但是如果你的结构不同，那你就要根据实际路径修改下面的`:path`
  pod 'React', :path => '../node_modules/react-native', :subspecs => [
    'Core',
    'RCTText',
    'RCTNetwork',
    'RCTWebSocket', # 这个模块是用于调试功能的
    # 在这里继续添加你所需要的模块
  ]

end

</div>

source 'https://github.com/CocoaPods/Specs.git'

# 对于Swift应用来说下面两句是必须的
platform :ios, '8.0'
use_frameworks!

# target的名字一般与你的项目名字相同
target 'swift-2048' do

  # 'node_modules'目录一般位于根目录中
  # 但是如果你的结构不同，那你就要根据实际路径修改下面的`:path`
  pod 'React', :path => '../node_modules/react-native', :subspecs => [
    'Core',
    'RCTText',
    'RCTNetwork',
    'RCTWebSocket', # 这个模块是用于调试功能的
    # 在这里继续添加你所需要的模块
  ]

end

</div>

Pod安装

创建好了Podfile后，就可以开始安装React Native的pod包了。

$ pod install

然后你应该可以看到类似下面的输出(译注：同样由于众所周知的网络原因，pod install的过程在国内非常不顺利，请自行配备稳定的翻墙工具，或是尝试一些镜像源)：

Analyzing dependencies
Fetching podspec for `React` from `../node_modules/react-native`
Downloading dependencies
Installing React (0.26.0)
Generating Pods project
Integrating client project
Sending stats
Pod installation complete! There are 3 dependencies from the Podfile and 1 total pod installed.

</div>

如果你看到类似"The swift-2048 [Debug] target overrides the FRAMEWORK_SEARCH_PATHS build setting defined in Pods/Target Support Files/Pods-swift-2048/Pods-swift-2048.debug.xcconfig. This can lead to problems with the CocoaPods installation"的警告，请查看Xcode的Build Settings中的Framework Search Paths选项，确保其中的Debug和Release都只包含$(inherited)。

</div>

代码集成

现在我们已经准备好了所有依赖，可以开始着手修改原生代码来把React Native真正植入到应用中了。在我们的2048示例中，首先尝试添加一个显示有"High Score"（得分排行榜）的React Native页面。

React Native组件

我们首先要写的是"High Score"（得分排行榜）的JavaScript端的代码。

创建一个index.ios.js文件

首先创建一个空的index.ios.js文件。一般来说我们把它放置在项目根目录下。

index.ios.js是React Native应用在iOS上的入口文件。而且它是不可或缺的！它可以是个很简单的文件，简单到可以只包含一行require/import导入语句。本教程中为了简单示范，把全部的代码都写到了index.ios.js里（当然实际开发中我们并不推荐这样做）。

# 在项目根目录执行以下命令创建文件：
$ touch index.ios.js

添加你自己的React Native代码

在index.ios.js中添加你自己的组件。这里我们只是简单的添加一个<Text>组件，然后用一个带有样式的<View>组件把它包起来。

'use strict';

import React from 'react';
import {
  AppRegistry,
  StyleSheet,
  Text,
  View
} from 'react-native';

class RNHighScores extends React.Component {
  render() {
    var contents = this.props["scores"].map(
      score => <Text key={score.name}>{score.name}:{score.value}{"\n"}</Text>
    );
    return (
      <View style={styles.container}>
        <Text style={styles.highScoresTitle}>
          2048 High Scores!
        </Text>
        <Text style={styles.scores}>
          {contents}
        </Text>
      </View>
    );
  }
}

const styles = StyleSheet.create({
  container: {
    flex: 1,
    justifyContent: 'center',
    alignItems: 'center',
    backgroundColor: '#FFFFFF',
  },
  highScoresTitle: {
    fontSize: 20,
    textAlign: 'center',
    margin: 10,
  },
  scores: {
    textAlign: 'center',
    color: '#333333',
    marginBottom: 5,
  },
});

// 整体js模块的名称
AppRegistry.registerComponent('RNHighScores', () => RNHighScores);

RNHighScores是整体js模块（即你所有的js代码）的名称。你在iOS原生代码中添加React Native视图时会用到这个名称。

The Magic: RCTRootView

现在我们已经在index.ios.js中创建了React Native组件，下一步就是把这个组件添加给一个新的或已有的ViewController。 The easiest path to take is to optionally create an event path to your component and then add that component to an existing ViewController.

We will tie our React Native component with a new native view in the ViewController that will actually host it called RCTRootView .

Create an Event Path

You can add a new link on the main game menu to go to the "High Score" React Native page.

事件处理

We will now add an event handler from the menu link. A method will be added to the main ViewController of your application. This is where RCTRootView comes into play.

When you build a React Native application, you use the React Native packager to create an index.ios.bundle that will be served by the React Native server. Inside index.ios.bundle will be our RNHighScore module. So, we need to point our RCTRootView to the location of the index.ios.bundle resource (via NSURL) and tie it to the module.

We will, for debugging purposes, log that the event handler was invoked. Then, we will create a string with the location of our React Native code that exists inside the index.ios.bundle. Finally, we will create the main RCTRootView. Notice how we provide RNHighScores as the moduleName that we created above when writing the code for our React Native component.

</div>

首先导入RCTRootView的头文件。

#import "RCTRootView.h"

这里的initialProperties are here for illustration purposes so we have some data for our high score screen. In our React Native component, we will use this.props to get access to that data.

- (IBAction)highScoreButtonPressed:(id)sender {
    NSLog(@"High Score Button Pressed");
    NSURL *jsCodeLocation = [NSURL
                             URLWithString:@"http://localhost:8081/index.ios.bundle?platform=ios"];
    RCTRootView *rootView =
      [[RCTRootView alloc] initWithBundleURL : jsCodeLocation
                           moduleName        : @"RNHighScores"
                           initialProperties :
                             @{
                               @"scores" : @[
                                 @{
                                   @"name" : @"Alex",
                                   @"value": @"42"
                                  },
                                 @{
                                   @"name" : @"Joel",
                                   @"value": @"10"
                                 }
                               ]
                             }
                           launchOptions    : nil];
    UIViewController *vc = [[UIViewController alloc] init];
    vc.view = rootView;
    [self presentViewController:vc animated:YES completion:nil];
}

Note that RCTRootView initWithURL starts up a new JSC VM. To save resources and simplify the communication between RN views in different parts of your native app, you can have multiple views powered by React Native that are associated with a single JS runtime. To do that, instead of using [RCTRootView alloc] initWithURL, use RCTBridge initWithBundleURL to create a bridge and then use RCTRootView initWithBridge.

</div>

首先import导入React库。

import React

The initialProperties are here for illustration purposes so we have some data for our high score screen. In our React Native component, we will use this.props to get access to that data.

@IBAction func highScoreButtonTapped(sender : UIButton) {
  NSLog("Hello")
  let jsCodeLocation = URL(string: "http://localhost:8081/index.ios.bundle?platform=ios")
  let mockData:NSDictionary = ["scores":
      [
          ["name":"Alex", "value":"42"],
          ["name":"Joel", "value":"10"]
      ]
  ]

  let rootView = RCTRootView(
      bundleURL: jsCodeLocation,
      moduleName: "RNHighScores",
      initialProperties: mockData as [NSObject : AnyObject],
      launchOptions: nil
  )
  let vc = UIViewController()
  vc.view = rootView
  self.present(vc, animated: true, completion: nil)
}

注意RCTRootView bundleURL starts up a new JSC VM. To save resources and simplify the communication between RN views in different parts of your native app, you can have multiple views powered by React Native that are associated with a single JS runtime. To do that, instead of using RCTRootView bundleURL, use RCTBridge initWithBundleURL to create a bridge and then use RCTRootView initWithBridge.

</div>

When moving your app to production, the NSURL can point to a pre-bundled file on disk via something like [[NSBundle mainBundle] URLForResource:@"main" withExtension:@"jsbundle"];. You can use the react-native-xcode.sh script in node_modules/react-native/packager/ to generate that pre-bundled file.

</div>

When moving your app to production, the NSURL can point to a pre-bundled file on disk via something like let mainBundle = NSBundle(URLForResource: "main" withExtension:"jsbundle"). You can use the react-native-xcode.sh script in node_modules/react-native/packager/ to generate that pre-bundled file.

</div>

Wire Up

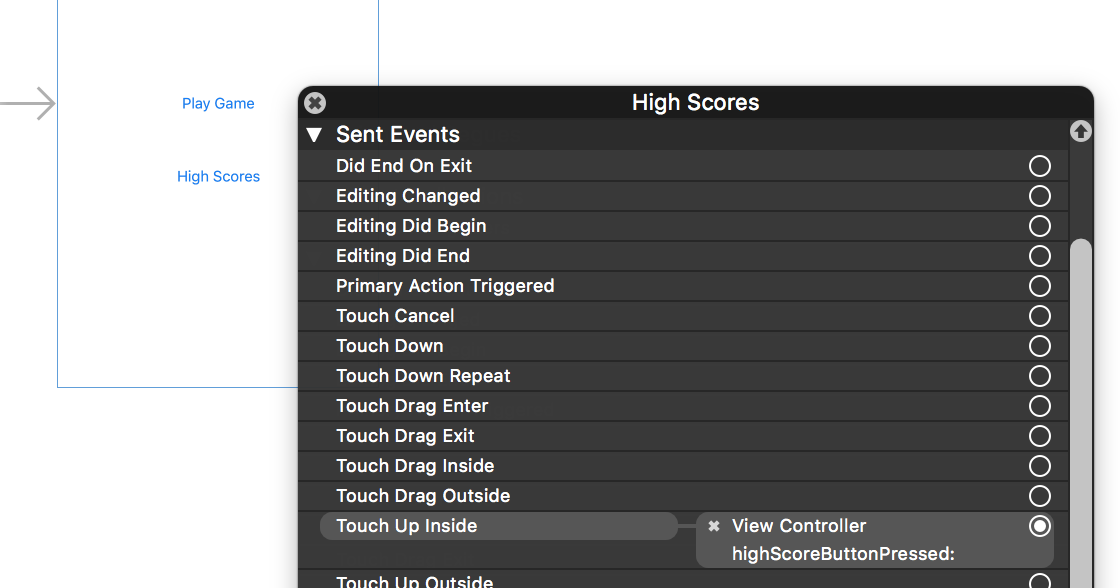

Wire up the new link in the main menu to the newly added event handler method.

One of the easier ways to do this is to open the view in the storyboard and right click on the new link. Select something such as the Touch Up Inside event, drag that to the storyboard and then select the created method from the list provided.

测试植入结果

You have now done all the basic steps to integrate React Native with your current application. Now we will start the React Native packager to build the index.ios.bundle packager and the server running on localhost to serve it.

App Transport Security

Apple has blocked implicit cleartext HTTP resource loading. So we need to add the following our project's Info.plist (or equivalent) file.

<key>NSAppTransportSecurity</key>
<dict>
    <key>NSExceptionDomains</key>
    <dict>
        <key>localhost</key>
        <dict>
            <key>NSTemporaryExceptionAllowsInsecureHTTPLoads</key>
            <true/>
        </dict>
    </dict>
</dict>

运行Packager

# From the root of your project, where the `node_modules` directory is located.
$ npm start

运行应用

如果你使用的是Xcode，那么照常编译和运行应用即可。如果你没有使用Xcode（但是你仍然必须安装Xcode），则可以在命令行中使用以下命令来运行应用：

# 在项目的根目录中执行：
$ react-native run-ios

In our sample application, you should see the link to the "High Scores" and then when you click on that you will see the rendering of your React Native component.

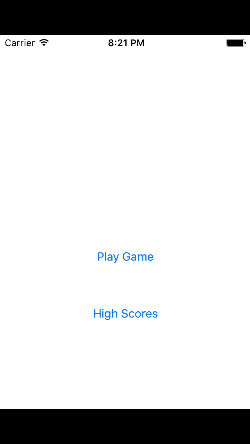

Here is the native application home screen:

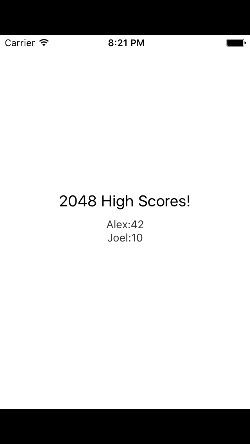

Here is the React Native high score screen:

If you are getting module resolution issues when running your application please see this GitHub issue for information and possible resolution. This comment seemed to be the latest possible resolution.

看一下完整的代码变更

</div>

你可以在这个GitHub提交记录里查看一次完整的植入过程具体有哪些代码/文件变更。

</div>

你可以在这个GitHub提交记录里查看一次完整的植入过程具体有哪些代码/文件变更。

</div>

在应用中添加JS代码

在项目的根目录中运行：

$ npm init
$ npm install --save react react-native
$ curl -o .flowconfig https://raw.githubusercontent.com/facebook/react-native/master/.flowconfig

This creates a node module for your app and adds the react-native npm dependency. Now open the newly created package.json file and add this under scripts:

"start": "node node_modules/react-native/local-cli/cli.js start"

首先在项目根目录中创建index.android.js文件，然后将下面的代码复制粘贴进来：

'use strict';

import React from 'react';
import {
  AppRegistry,
  StyleSheet,
  Text,
  View
} from 'react-native';

class HelloWorld extends React.Component {
  render() {
    return (
      <View style={styles.container}>
        <Text style={styles.hello}>Hello, World</Text>
      </View>
    )
  }
}
var styles = StyleSheet.create({
  container: {
    flex: 1,
    justifyContent: 'center',
  },
  hello: {
    fontSize: 20,
    textAlign: 'center',
    margin: 10,
  },
});

AppRegistry.registerComponent('HelloWorld', () => HelloWorld);

Prepare your current app

In your app's build.gradle file add the React Native dependency:

 dependencies {
     ...
     compile "com.facebook.react:react-native:+" // From node_modules.
 }

If you want to ensure that you are always using a specific React Native version in your native build, replace + with an actual React Native version you've downloaded from npm.

In your project's build.gradle file add an entry for the local React Native maven directory:

allprojects {
    repositories {
        ...
        maven {
            // All of React Native (JS, Android binaries) is installed from npm
            url "$rootDir/../node_modules/react-native/android"
        }
    }
    ...
}

Make sure that the path is correct! You shouldn’t run into any “Failed to resolve: com.facebook.react:react-native:0.x.x" errors after running Gradle sync in Android Studio.

Next, make sure you have the Internet permission in your AndroidManifest.xml:

<uses-permission android:name="android.permission.INTERNET" />

If you need to access to the DevSettingsActivity add to your AndroidManifest.xml:

<activity android:name="com.facebook.react.devsupport.DevSettingsActivity" />

This is only really used in dev mode when reloading JavaScript from the development server, so you can strip this in release builds if you need to.

添加原生代码

You need to add some native code in order to start the React Native runtime and get it to render something. To do this, we're going to create an Activity that creates a ReactRootView, starts a React application inside it and sets it as the main content view.

If you are targetting Android version <5, use the AppCompatActivity class from the com.android.support:appcompat package instead of Activity.

public class MyReactActivity extends Activity implements DefaultHardwareBackBtnHandler {
    private ReactRootView mReactRootView;
    private ReactInstanceManager mReactInstanceManager;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);

        mReactRootView = new ReactRootView(this);
        mReactInstanceManager = ReactInstanceManager.builder()
                .setApplication(getApplication())
                .setBundleAssetName("index.android.bundle")
                .setJSMainModuleName("index.android")
                .addPackage(new MainReactPackage())
                .setUseDeveloperSupport(BuildConfig.DEBUG)
                .setInitialLifecycleState(LifecycleState.RESUMED)
                .build();
        mReactRootView.startReactApplication(mReactInstanceManager, "HelloWorld", null);

        setContentView(mReactRootView);
    }

    @Override
    public void invokeDefaultOnBackPressed() {
        super.onBackPressed();
    }
}

If you are using a starter kit for React Native, replace the "HelloWorld" string with the one in your index.android.js file (it’s the first argument to the AppRegistry.registerComponent() method).

If you are using Android Studio, use Alt + Enter to add all missing imports in your MyReactActivity class. Be careful to use your package’s BuildConfig and not the one from the ...facebook... package.

We need set the theme of MyReactActivity to Theme.AppCompat.Light.NoActionBar beause some components rely on this theme.

 <activity
   android:name=".MyReactActivity"
   android:label="@string/app_name"
   android:theme="@style/Theme.AppCompat.Light.NoActionBar">
 </activity>

A ReactInstanceManager can be shared amongst multiple activities and/or fragments. You will want to make your own ReactFragment or ReactActivity and have a singleton holder that holds a ReactInstanceManager. When you need the ReactInstanceManager (e.g., to hook up the ReactInstanceManager to the lifecycle of those Activities or Fragments) use the one provided by the singleton.

Next, we need to pass some activity lifecycle callbacks down to the ReactInstanceManager:

@Override
protected void onPause() {
    super.onPause();

    if (mReactInstanceManager != null) {
        mReactInstanceManager.onHostPause();
    }
}

@Override
protected void onResume() {
    super.onResume();

    if (mReactInstanceManager != null) {
        mReactInstanceManager.onHostResume(this, this);
    }
}

@Override
protected void onDestroy() {
    super.onDestroy();

    if (mReactInstanceManager != null) {
        mReactInstanceManager.onHostDestroy();
    }
}

We also need to pass back button events to React Native:

@Override
 public void onBackPressed() {
    if (mReactInstanceManager != null) {
        mReactInstanceManager.onBackPressed();
    } else {
        super.onBackPressed();
    }
}

This allows JavaScript to control what happens when the user presses the hardware back button (e.g. to implement navigation). When JavaScript doesn't handle a back press, your invokeDefaultOnBackPressed method will be called. By default this simply finishes your Activity.

Finally, we need to hook up the dev menu. By default, this is activated by (rage) shaking the device, but this is not very useful in emulators. So we make it show when you press the hardware menu button (use Ctrl + M if you're using Android Studio emulator):

@Override
public boolean onKeyUp(int keyCode, KeyEvent event) {
    if (keyCode == KeyEvent.KEYCODE_MENU && mReactInstanceManager != null) {
        mReactInstanceManager.showDevOptionsDialog();
        return true;
    }
    return super.onKeyUp(keyCode, event);
}

现在activity已就绪，可以运行一些JavaScript代码了。

配置权限以便开发中的红屏错误能正确显示

If your app is targeting the Android API level 23 or greater, make sure you have the overlay permission enabled for the development build. You can check it with Settings.canDrawOverlays(this);. This is required in dev builds because react native development errors must be displayed above all the other windows. Due to the new permissions system introduced in the API level 23, the user needs to approve it. This can be acheived by adding the following code to the Activity file in the onCreate() method. OVERLAY_PERMISSION_REQ_CODE is a field of the class which would be responsible for passing the result back to the Activity.

if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.M) {
    if (!Settings.canDrawOverlays(this)) {
        Intent intent = new Intent(Settings.ACTION_MANAGE_OVERLAY_PERMISSION,
                                   Uri.parse("package:" + getPackageName()));
        startActivityForResult(intent, OVERLAY_PERMISSION_REQ_CODE);
    }
}

Finally, the onActivityResult() method (as shown in the code below) has to be overridden to handle the permission Accepted or Denied cases for consistent UX.

@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data) {
    if (requestCode == OVERLAY_PERMISSION_REQ_CODE) {
        if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.M) {
            if (!Settings.canDrawOverlays(this)) {
                // SYSTEM_ALERT_WINDOW permission not granted...
            }
        }
    }
}

运行你的应用

运行应用首先需要启动开发服务器（Packager）。你只需在项目根目录中执行以下命令即可：

$ npm start

Now build and run your Android app as normal (./gradlew installDebug from command-line; in Android Studio just create debug build as usual).

If you are using Android Studio for your builds and not the Gradle Wrapper directly, make sure you install watchman before running npm start. It will prevent the packager from crashing due to conflicts between Android Studio and the React Native packager.

Once you reach your React-powered activity inside the app, it should load the JavaScript code from the development server and display:

在Android Studio中打包

你也可以使用Android Studio来打包！You can use Android Studio to create your release builds too! It’s as easy as creating release builds of your previously-existing native Android app. There’s just one additional step, which you’ll have to do before every release build. You need to execute the following to create a React Native bundle, which’ll be included with your native Android app:

$ react-native bundle --platform android --dev false --entry-file index.android.js --bundle-output android/com/your-company-name/app-package-name/src/main/assets/index.android.bundle --assets-dest android/com/your-company-name/app-package-name/src/main/res/

Don’t forget to replace the paths with correct ones and create the assets folder if it doesn’t exist!

Now just create a release build of your native app from within Android Studio as usual and you should be good to go!

</div>
